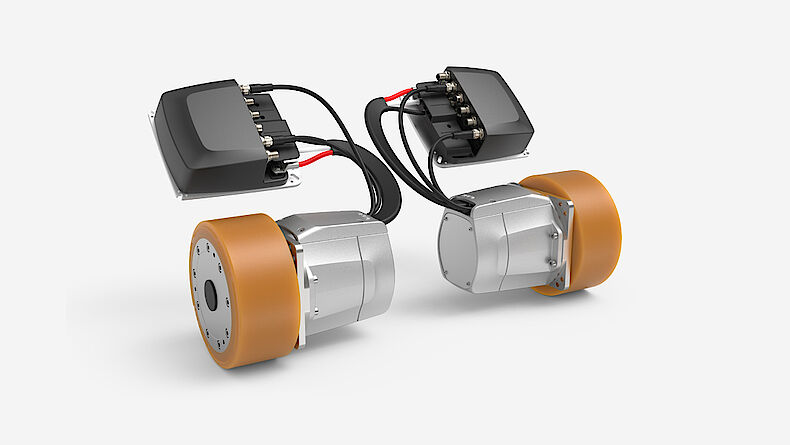

cyber® iTAS® system 2 – servo drive system for AGV / AMR

  • cyber® iTAS® system 2 – servo drive system for AGV / AMR

  • Lean and integration-friendly safety architecture with maximum power density

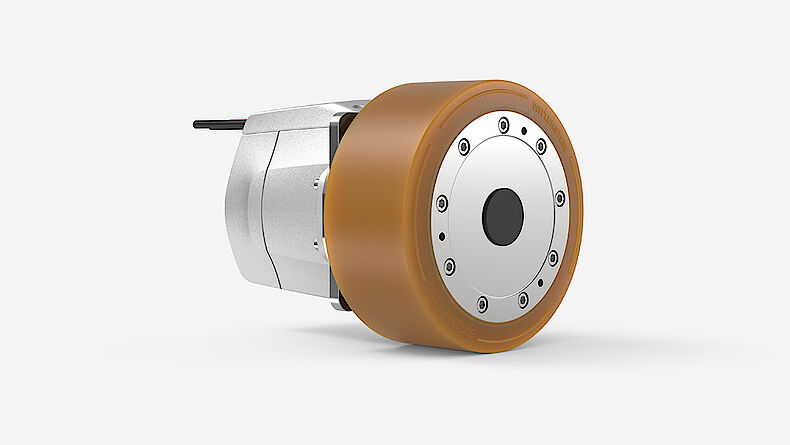

  • cyber® TAS actuator 2 – with integrated brake, safety encoder, gearbox and wheel

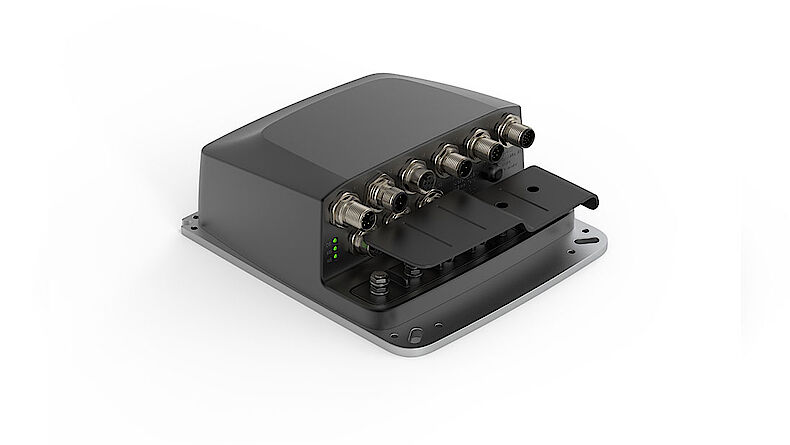

  • cyber® simco® drive 2 (SIM2100) – servo drive with protection class IP65 and many safety functions

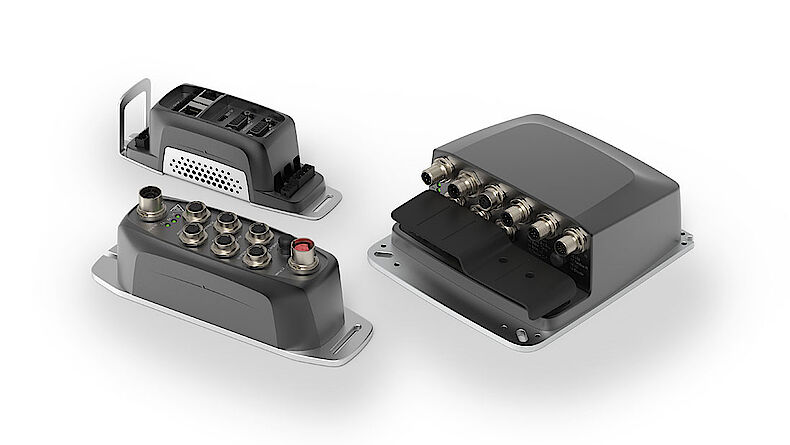

  • cyber® simco® drive 2 – servo drive for use in control cabinet or decentralized use

safe – compact – simple

The cyber® iTAS® system 2, consisting of a servo drive and actuator, combines a lean and integration-friendly safety architecture with maximum power density. This gives the AGVs (Automated Guided Vehicles) and AMRs (Autonomous Mobile Robots) a decisive gain in performance and increases productivity. The system design of the differential drive system with an integrated brake and wheel also impresses with its industrial simplicity, which minimizes commissioning and service costs in the long term.

Benefit from all these advantages in the development of Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs).

To the microsite with video and other specials

Excellent solution for complex motion tasks

Simplicity

  • Wide voltage range input of 12 to 60 VDC for power and logic
  • Simple diagnostic functions in case of error
  • Use of M12 industrial connectors
  • Simplified cable routing


Safety

  • Safety encoder and safety brake integrated
  • STO according to SIL3 / PL e
  • SBC according to SIL3 / PL e
  • SP via EnDat FS (SIL2 / PL d)
  • Encoder emulation (SIL2 / PL d)
  • Safe communication: PROFIsafe

Connectivity

  • Multi-Ethernet interface
  • Wide range of fieldbus interfaces (CANopen, EtherCAT, EtherNet/IP CIP Sync, PROFINET, Sercos III, OPC UA)

Perfomance

  • Up to 750 kg payload per wheel with 180 mm overall height
  • 200 Nm max. torque
  • Back-to-back assembly (230 mm actuator length)

Flat design

  • Axial mounting of the actuator for minimum overall height
  • In-wheel gearbox
  • Wheel size 180 mm

Service

  • Positioning servo drive and actuator in close proximity
  • Protection class IP54 (actuator) & IP65 (servo drive)
  • Axial, one-sided cable outlet

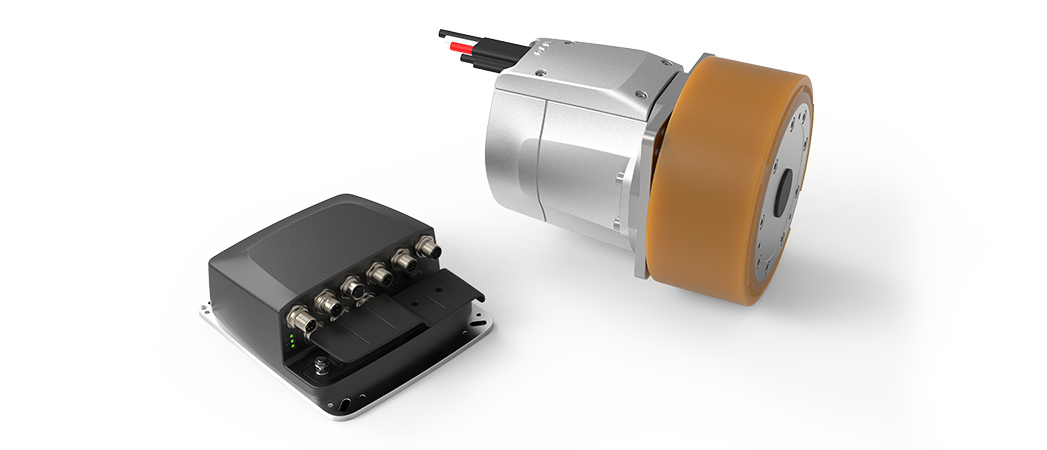

Product highlights

The performance and compactness of the cyber ® iTAS® system 2 increase your design flexibility. With all its functionality in terms of safety and performance, the servo drive system cyber® iTAS® system 2 is designed to be industry-compatible and simple. The harmonized system of servo drive and actuator thus enables new, compact and safe concepts for Automated Guided Vehicles (AGVs) as well as Autonomous Mobile Robots (AMRs).

IP65 for vehicle design without control cabinet

Integrated safety encoder, brake and gearbox

Axial cable and connector outlet – all on one side

200 Nm max. torque and speeds of up to 2,5 m/s

Wide range of fieldbus interfaces and decentralized intelligence

Safety functions such as Safe Torque Off (STO), Safe Brake Control (SBC), Safe Position (SP) and encoder emulation

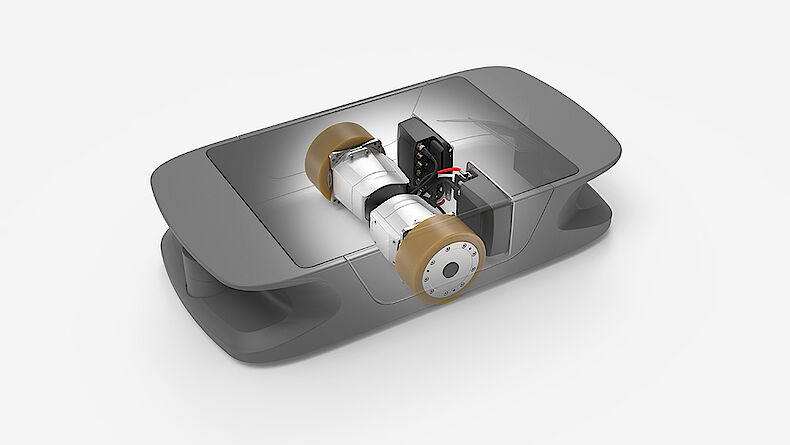

Next level safety architecture

The integrated safety architecture of the cyber® iTAS® system 2 requires fewer cables and connectors, fewer interfaces, components and modules and reduces the risk of errors as well as assembly and documentation effort.

Our safety functions

  • STO according to SIL3 / PL e
  • SBC according to SIL3 / PL e
  • SP via EnDat FS (SIL2 / PL d)
  • Encoder emulation (SIL2 / PL d)
  • Safe communication: PROFIsafe

Optimized cabling

  • Cable outlets all on one side
  • Reduction of contact points
  • Use of industrial M12 connectors

Integrated safety components

  • PL d Safety encoder
  • Safety brake

Payload

Up to 750 kg payload (per wheel) for shortest braking distances and smaller protective fields

Robustness

  • Protection class IP54 (actuator)
  • Protection class IP65 (servo drive)
  • Wide voltage range input of 12 to 60 VDC for power and logic

Perfectly harmonized system

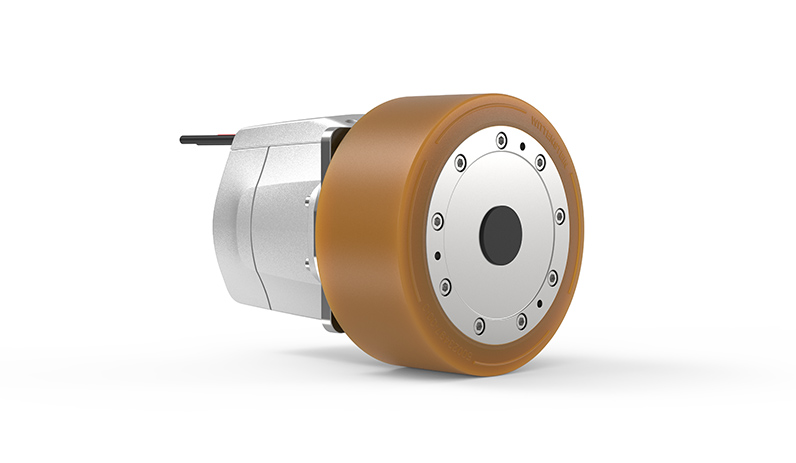

cyber® TAS actuator 2

The cyber® TAS actuator 2 offers a payload of 750 kg per wheel – with an overall height of only 180 mm. By integrating the gearbox into the wheel geometry and integrating a space-saving safety encoder, the actuator achieves an overall length of just 230 mm.

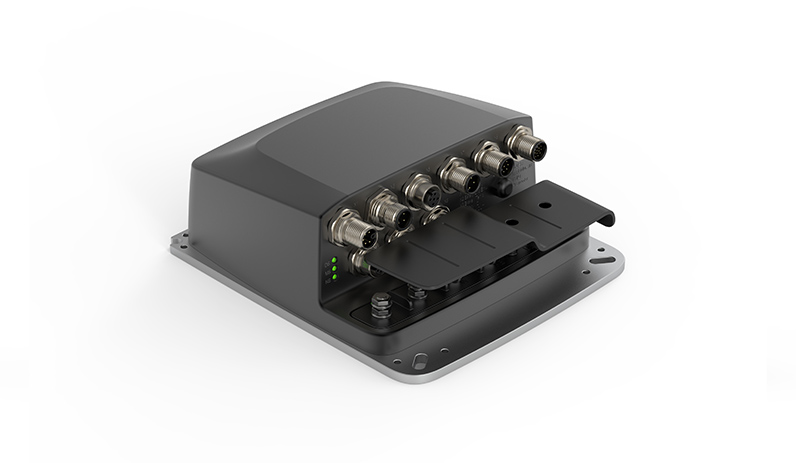

cyber® simco® drive 2

The cyber® simco® drive 2 range includes servo drives for sine-commutated servo motors in the voltage range from 12 to 60 VDC and a maximum capacity of up to 10 kW. The servo drives are available in a control cabinet version or in a decentralized design with protection rating IP65. In combination with the intuitive MotionGUI software, simple parameterization, commissioning and optimization of the system as well as flexible programming of applications is possible.
