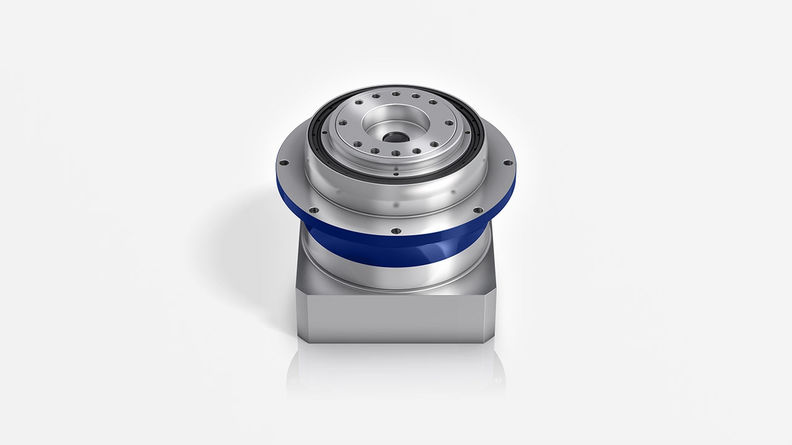

TP+ planetary gearbox

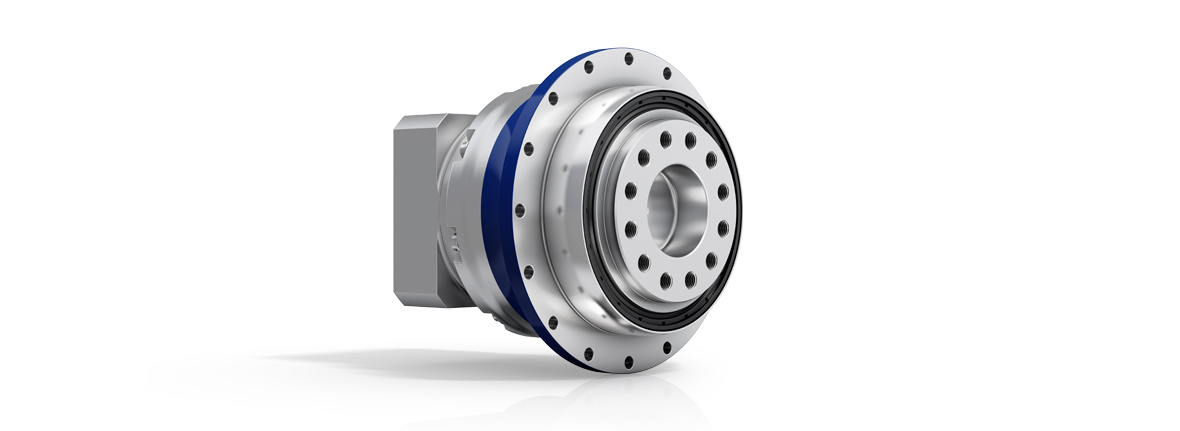

  • TP+ planetary gearbox

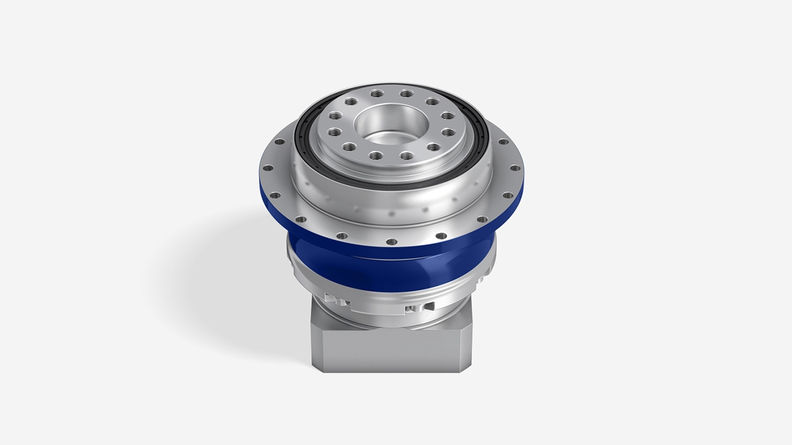

  • TP+ HIGH TORQUE planetary gearbox

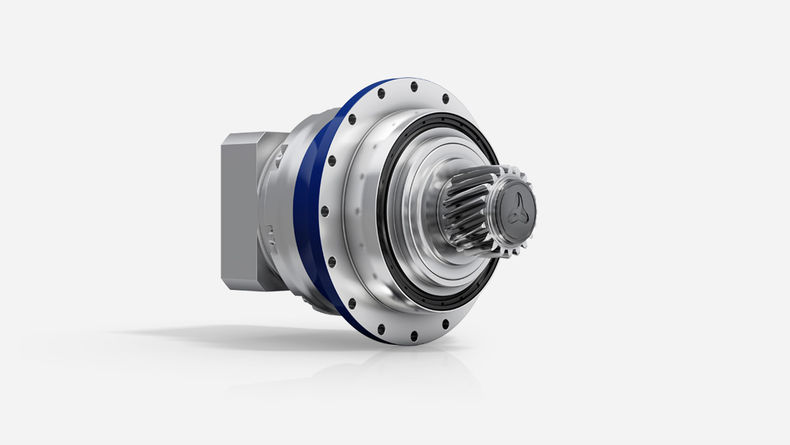

  • TP+ HIGH TORQUE planetary gearbox with pinion

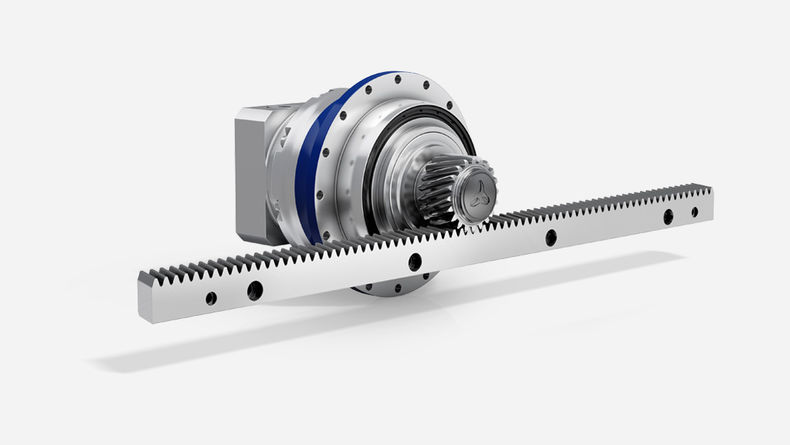

  • Advanced Linear System with planetary gearbox TP+ HIGH TORQUE

  • Motor mounting alpha Advanced Line / alpha Premium Line Planetary gearboxes

Compact precision

Compact top performers with output flange. The standard version is ideally suited for high positioning accuracy and highly dynamic cyclic operation. The TP+ HIGH TORQUE is particularly well suited for high-precision applications in which high torsional rigidity is required.

Customised solutions

We will be happy to develop a solution for you that is tailored to your drive needs. You benefit from our years of experience, our highly skilled staff and our comprehensive service catalog. Please contact us.

Contact form

WITTENSTEIN Ltd. - 3 The Glades. Festival Way

WITTENSTEIN Ltd.

3 The Glades. Festival Way

Stoke on Trent. Staffordshire. ST1 5SQ

  • Technical data
  • Options
Product type TP+TP+ HIGH TORQUE
Version MFMA
Ratio 4 - 10022 - 302,5
Number of sizes 78

Max. backlash c)

jt [arcmin]Standard

≤ 3

Reduced
≤ 1

Standard

≤ 1

Reduced

Max. torqueT2a [Nm]43 - 9600315 - 22000
Max. input speedn1Max [rpm]75007500
Torsional rigidityCt21 [Nm/arcmin]14503000
Max. tilting momentM2KMax [Nm]880031600

c) In relation to reference sizes

Product typeTP+TP+ HIGH TORQUE
VersionMFMA
Output shape
Flange
System output
Input shape
Motor-mounted
Self-contained version

Characteristic


Food-grade lubrication a) b)
Corrosion resistant a) b)
Optimized mass inertia a)
System solutions
Linear system (rack / pinion)
Servo actuator
Accessory (please refer to the product pages for further information)
Coupling
Mounting ring

a) Performance reduction: Technical data available on request

b) Please contact WITTENSTEIN alpha

Product highlights

Consistently high performance

Constant backlash throughout the service life of the gearbox ensures a consistently high performance.

Low maintenance

Highest quality standards guarantee a long service life and extend maintenance intervals.

Speed

High speeds increase machine output.

Positioning accuracy

Minimal backlash and extreme rigidity ensure maximum positioning accuracy at the tool center point.

Reliability

Extremely reliable gearboxes prevent cost-intensive machine breakdowns.

Extremely smooth running due to helical toothing

Connectivity of the motor shafts due to the large number of clamping hub diameters

Very high torque density due to superior toothing concept

Tapered roller bearing for absorbing axial and radial forces

Extremely smooth running due to helical toothing

Connectivity of the motor shafts due to the large number of clamping hub diameters

Very high torque density due to superior toothing concept

Tapered roller bearing for absorbing axial and radial forces

WITTENSTEIN alpha in all axes

Low backlash planetary gearboxes

WITTENSTEIN alpha develops complete, single-supplier solutions for any driving axis. They can be used in virtually any application – from high-precision axes in manufacturing systems to packaging machinery where maximum productivity is required.
The name WITTENSTEIN alpha is a byword for premium quality and reliability, high precision and synchronization accuracy, highest power density, a long lifetime and very simple motor mounting.
