VT+ worm gearbox

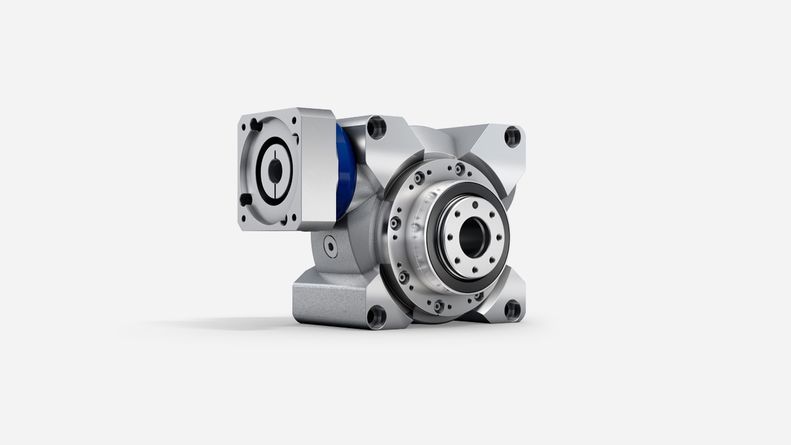

  • VT+ worm gearbox with flange hollow shaft

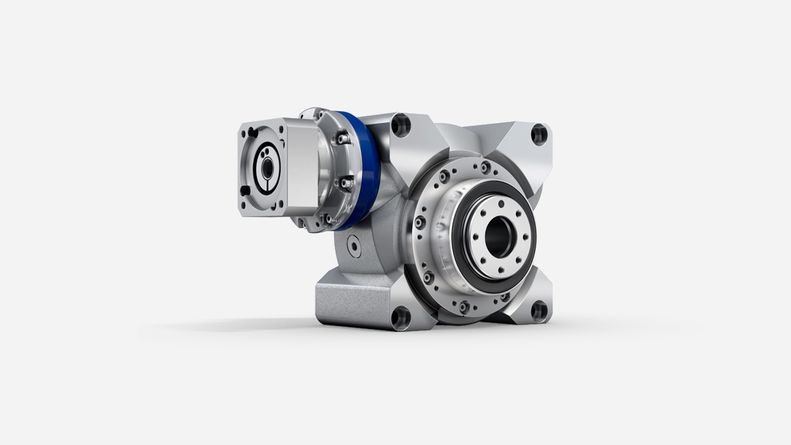

  • VT+ worm gearbox with flange hollow shaft and integral planetary input stage

Powerful torque but quiet running

The VT+ worm gearbox of the V-Drive family distinguishes itself by its hollow shaft flange and optimized output bearing: its high overload capacity means that axial and radial forces can be absorbed to a greater degree.

Customised solutions

We will be happy to develop a solution for you that is tailored to your drive needs. You benefit from our years of experience, our highly skilled staff and our comprehensive service catalog. Please contact us.

Contact form

WITTENSTEIN Ltd. - 3 The Glades. Festival Way

WITTENSTEIN Ltd.

3 The Glades. Festival Way

Stoke on Trent. Staffordshire. ST1 5SQ

  • Technical data
  • Options
Product type VT+
Version MF
Ratio 4 - 400
Number of sizes 4

Max. backlash c)

jt [arcmin]Standard

≤ 3
Reduced
≤ 2

Max. torqueT2a [Nm]165 - 1505
Max. input speedn1Max [rpm]6000
Torsional rigidityCt21 [Nm/arcmin]213
Max. tilting momentM2KMax [Nm]3059

c) In relation to reference sizes

Output shape
Flanged hollow shaft
Input shape
Motor-mounted
Characteristic
Food-grade lubrication
Corrosion resistant
System solutions
Linear system (rack / pinion)
Accessory (please refer to the product pages for further information)
Coupling

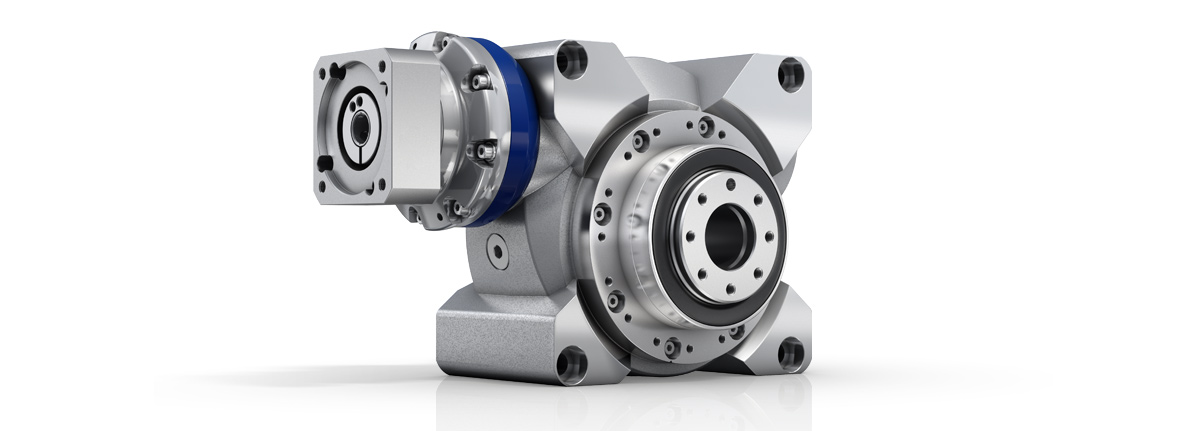

Product highlights

Strong performance

The VT+ worm gearbox convinces with a strong performance in economical standard applications in cyclic and continuous operation.

No stick-slip-effect

The stick-slip effect is not an issue in applications with the VH+ thanks to the perfected hollow-flank toothing.

High flexibility

In addition to the flange hollow shaft, the worm gearboxes are also available in a corrosion-resistant design.

Constant low backlash

Constant low backlash over the entire service life affords consistent high quality with high positioning accuracy.

Metal bellows coupling

  • Completely backlash-free
  • Fatigue endurable and maintenance-free
  • Easy to mount
  • Integrated length compensation feature protects the motor

Radial shaft seal

  • Very long service life
  • Optimized for continous operation

Input bearing

  • Bearing package for absorbing axial and radial forces
  • Very well suited for high input speeds

Hollow-flank toothing

  • High accuracy of torsional backlash throughout the entire service life
  • High efficiency and extremely high power density

​​​​​​​Output bearing

  • High overload capacity for absorbing axial and radial forces

Metal bellows coupling

  • Completely backlash-free
  • Fatigue endurable and maintenance-free
  • Easy to mount
  • Integrated length compensation feature protects the motor

Radial shaft seal

  • Very long service life
  • Optimized for continous operation

Input bearing

  • Bearing package for absorbing axial and radial forces
  • Very well suited for high input speeds

Hollow-flank toothing

  • High accuracy of torsional backlash throughout the entire service life
  • High efficiency and extremely high power density

​​​​​​​Output bearing

  • High overload capacity for absorbing axial and radial forces

WITTENSTEIN alpha in all axes

Right-angle gearboxes

WITTENSTEIN alpha develops complete, single-supplier solutions for any driving axis. They can be used in virtually any application – from high-precision axes in manufacturing systems to packaging machinery where maximum productivity is required.
The name WITTENSTEIN alpha is a byword for premium quality and reliability, high precision and synchronization accuracy, highest power density, a long lifetime and very simple motor mounting.
