VS+ worm gearbox

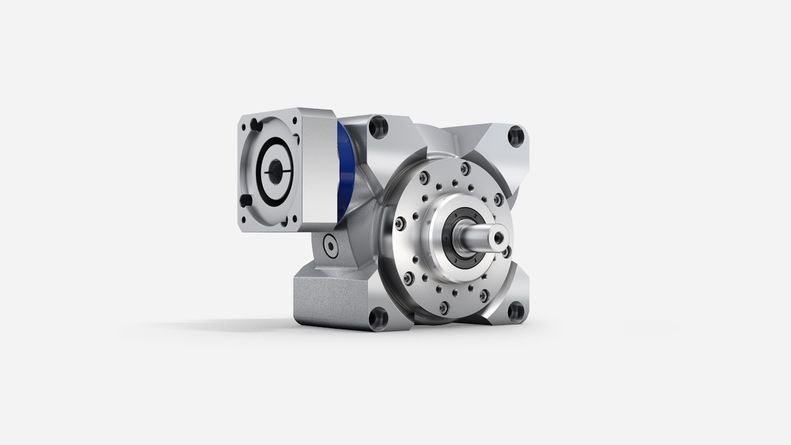

  • VS+ worm gearbox with solid shaft

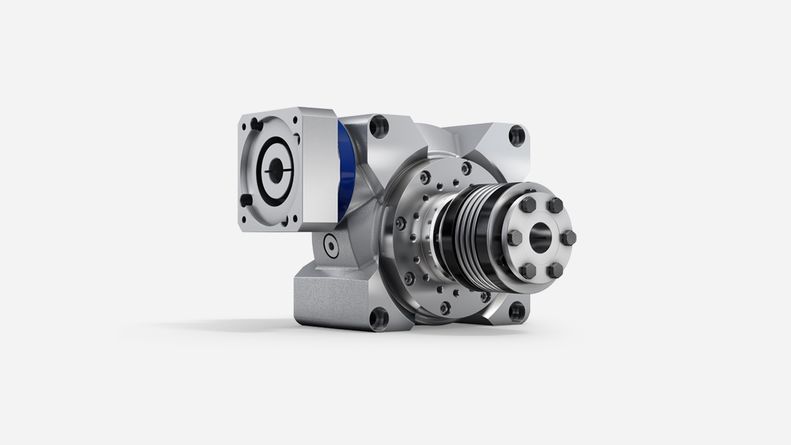

  • VS+ worm gearbox with metal bellows coupling BC3

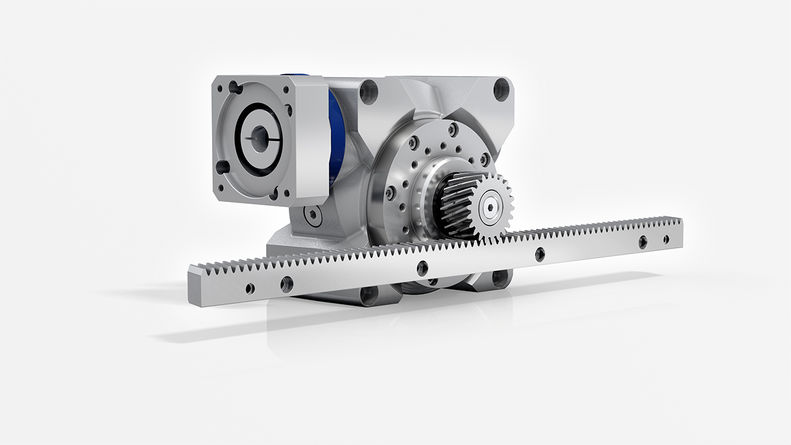

  • VS+ worm gearbox with rack and pinion

Powerful torque but quiet running

The VS+ worm gearbox of the V-Drive family is characterised by a constantly low backlash. This guarantees consistently high quality with high positioning accuracy over the entire service life of the gear unit.

Customised solutions

We will be happy to develop a solution for you that is tailored to your drive needs. You benefit from our years of experience, our highly skilled staff and our comprehensive service catalog. Please contact us.

Contact form

WITTENSTEIN Ltd. - 3 The Glades. Festival Way

WITTENSTEIN Ltd.

3 The Glades. Festival Way

Stoke on Trent. Staffordshire. ST1 5SQ

  • Technical data
  • Options
Product type

VS+

Version MF
Ratio 4 - 400
Number of sizes 4

Max. backlash c)

jt [arcmin]Standard

≤ 3

Reduced
≤ 2

Max. torqueT2a [Nm]165 - 1505
Max. input speedn1Max [rpm]6000
Torsional rigidityCt21 [Nm/arcmin]153
Max. tilting momentM2KMax [Nm]3059

c) In relation to reference sizes

Output shape
Smooth shaft

Shaft with key d)

Splined shaft (DIN 5480)
Output on both sides
Input shape
Motor-mounted
Characteristic
Food-grade lubrication
Corrosion resistant
System solutions
Linear system (rack / pinion)
Accessory (please refer to the product pages for further information)
Coupling

d) Performance reduction: Please use our sizing software cymex® for a detailed sizing

Product highlights

Strong performance

The VS+ worm gearbox convinces with a strong performance in economical standard applications in cyclic and continuous operation.

No stick-slip-effect

The stick-slip effect is not an issue in applications with the VS+ thanks to the perfected hollow-flank toothing.

High flexibility

In addition to the shaft, the worm gearboxes are also available in a corrosion-resistant design.

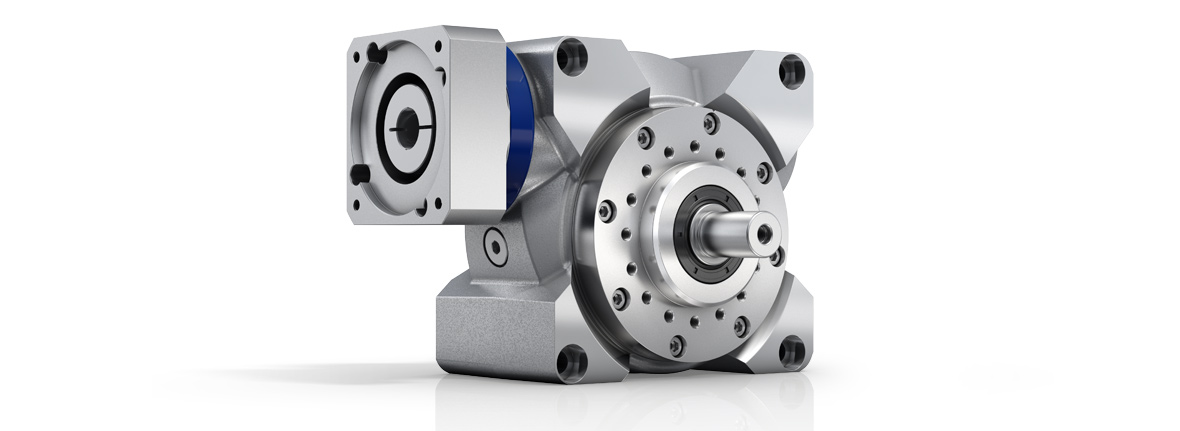

Radial shaft seal

  • very long service life
  • optimized for continous operation

Hollow-flank toothing

  • high accuracy of torsional backlash throughout the entire service life
  • High efficiency and extremely high power density

Input bearing

  • bearing package for absorbing axial and radial forces
  • very well suited for high input speeds

Metal bellows coupling

  • completely backlash-free
  • fatigue endurable and maintenance-free
  • easy to mount
  • integrated length compensation feature protects the motor

Output bearing

  • high overload capacity for absorbing axial and radial forces

Radial shaft seal

  • very long service life
  • optimized for continous operation

Hollow-flank toothing

  • high accuracy of torsional backlash throughout the entire service life
  • High efficiency and extremely high power density

Input bearing

  • bearing package for absorbing axial and radial forces
  • very well suited for high input speeds

Metal bellows coupling

  • completely backlash-free
  • fatigue endurable and maintenance-free
  • easy to mount
  • integrated length compensation feature protects the motor

Output bearing

  • high overload capacity for absorbing axial and radial forces
