TPK+ hypoid gearboxes

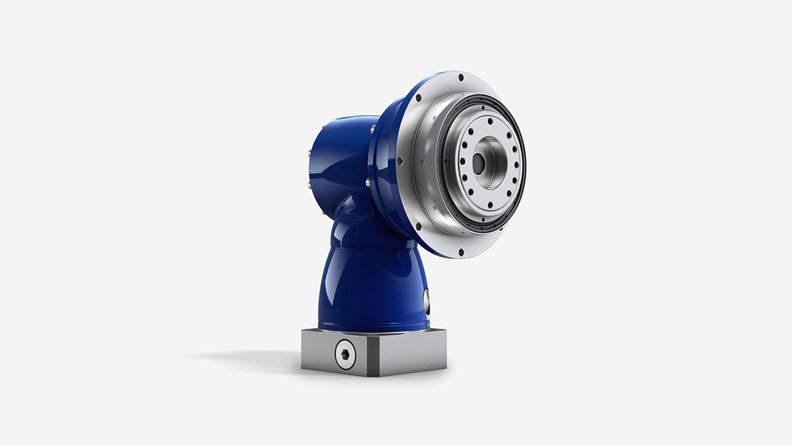

  • TPK+ hypoid gearbox with output flange

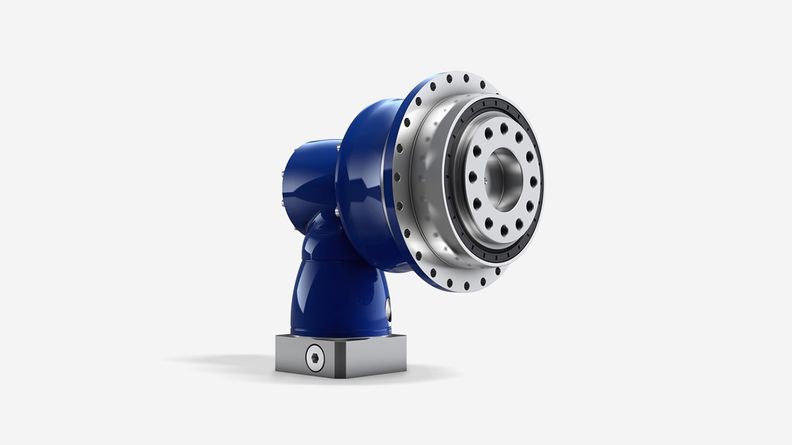

  • TPK+ HIGH TORQUE hypoid gearbox with output flange

  • TPK+ Hypoidgetriebe in korrosionsbeständigem Design

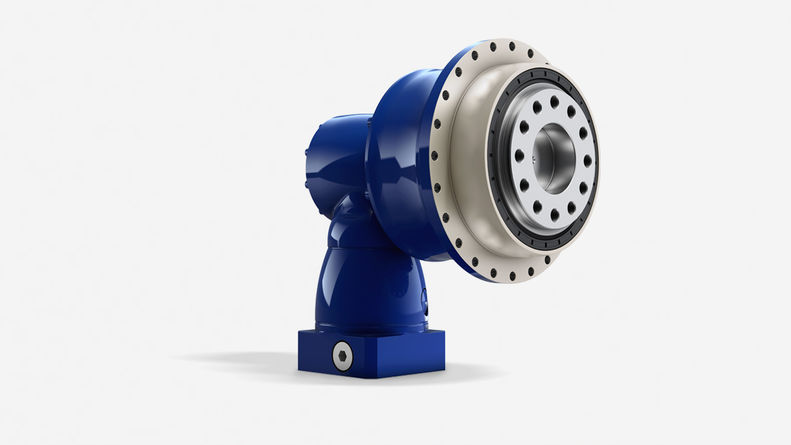

  • TPK+ HIGH TORQUE Hypoidgetriebe in korrosionsbeständigem Design

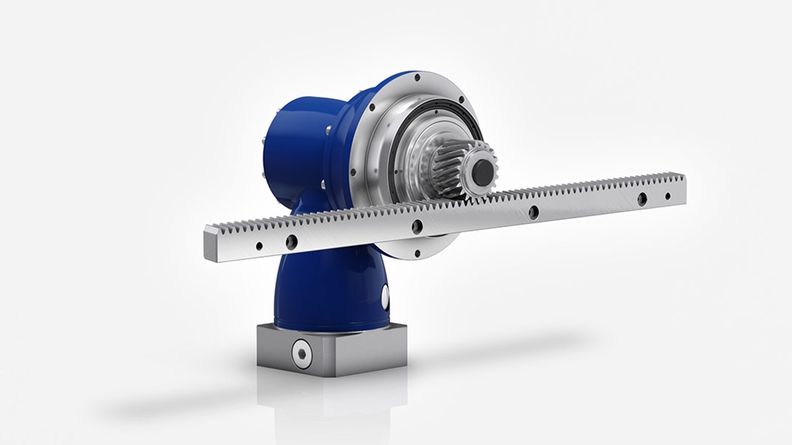

  • TPK+ hypoid gearbox with rack and pinion

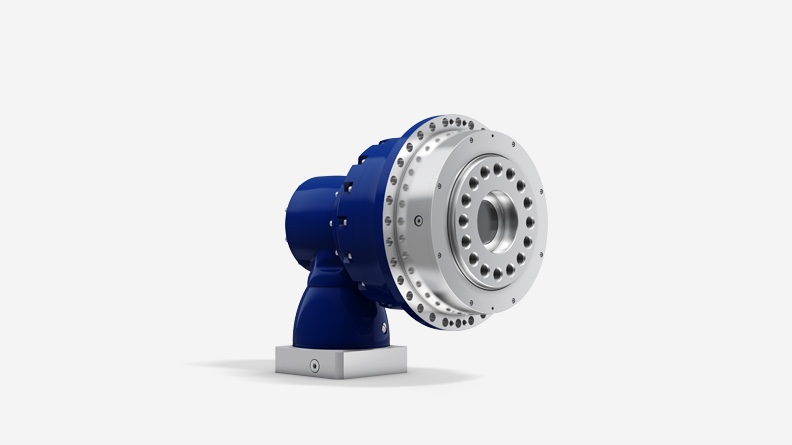

  • TPK+ 2000 HIGH TORQUE

  • Motor mounting alpha Advanced / Premium Line Right-angle gearboxes

Space-saving right-angle precision with output flange

Low backlash right-angle gearboxes with TP+ compatible output flange. With its short design in the axial plane the gearbox series TPK+ is used in compact machines. They especially convince through high power density while delivering high precision, torque and efficiency. TPK+ HIGH TORQUE further increase torques and torsional rigidity to achieve the highest power density.

Customised solutions

We will be happy to develop a solution for you that is tailored to your drive needs. You benefit from our years of experience, our highly skilled staff and our comprehensive service catalog. Please contact us.

Contact form

WITTENSTEIN Ltd. - 3 The Glades. Festival Way

WITTENSTEIN Ltd.

3 The Glades. Festival Way

Stoke on Trent. Staffordshire. ST1 5SQ

  • Technical data
  • Options
Product type TPK+TPK+ HIGH TORQUE
Version MFMA
Ratio 12 - 1000066 - 5500
Number of sizes 65

Max. backlash c)

jt [arcmin]Standard

≤ 4

Reduced
≤ 2

Standard

≤ 1,3

Reduced

Max. torqueT2a [Nm]80 - 7056440 - 10450
Max. input speedn1Max [rpm]75007500
Torsional rigidityCt21 [Nm/arcmin]13501899
Max. tilting momentM2KMax [Nm]88009500

c) In relation to reference sizes

Product typeTPK+TPK+ HIGH TORQUE
VersionMFMA
Output shape
Flange
System output
Output on both sides
Input shape
Motor-mounted
Characteristic
Food-grade lubrication a) b)
Corrosion resistant a) b)
System solutions
Linear system (rack / pinion)
Accessory (please refer to the product pages for further information)
Coupling

a) Performance reduction: Technical data available on request

b) Please contact WITTENSTEIN alpha

Product highlights

Consistently high performance

Constant backlash throughout the service life of the gearbox ensures a consistently high performance.

Low maintenance

Highest quality standards guarantee a long service life and extend maintenance intervals.

Speed

High speeds increase machine output.

Compactness

The right-angle design allows for shorter machine concepts due to being short in the axial plane.

Positioning accuracy

Minimal backlash and extreme rigidity ensure maximum positioning accuracy at the tool center point.

Reliability

Extremely reliable gearboxes prevent cost-intensive machine breakdowns.

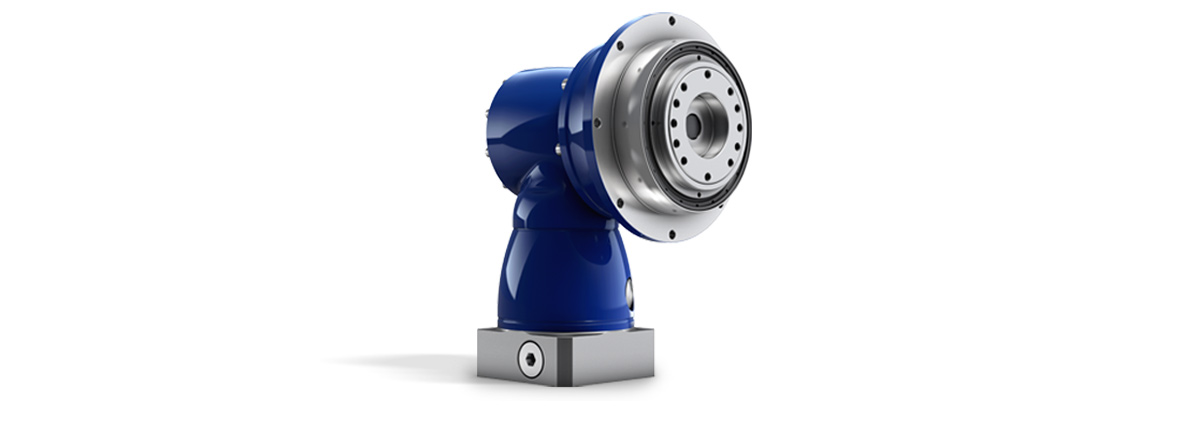

Taper roller bearings for absorbing axial and radial forces

Output compatible with TP+ series

High-quality hypoid gearing for a higher torque and smoother operation

Metal bellows coupling at the input:
length compensation to protect the motor bearing

Taper roller bearings for absorbing axial and radial forces

Output compatible with TP+ series

High-quality hypoid gearing for a higher torque and smoother operation

Metal bellows coupling at the input:
length compensation to protect the motor bearing

WITTENSTEIN alpha in all axes

Right-angle gearboxes

WITTENSTEIN alpha develops complete, single-supplier solutions for any driving axis. They can be used in virtually any application – from high-precision axes in manufacturing systems to packaging machinery where maximum productivity is required.
The name WITTENSTEIN alpha is a byword for premium quality and reliability, high precision and synchronization accuracy, highest power density, a long lifetime and very simple motor mounting.
