SPK+ hypoid gearbox

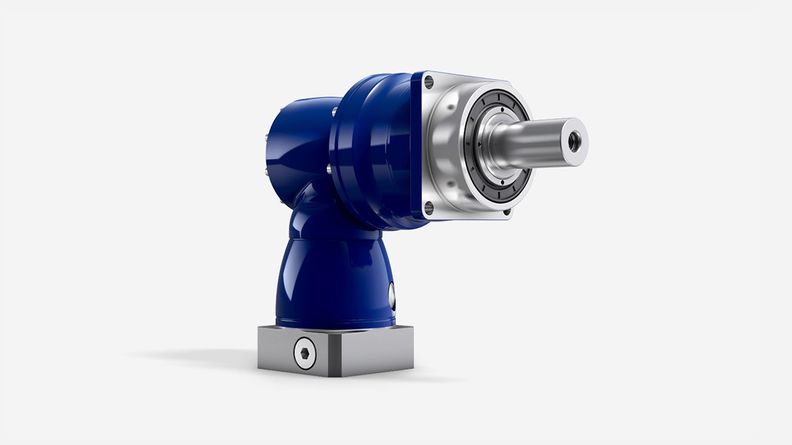

  • SPK+ hypoid gearbox

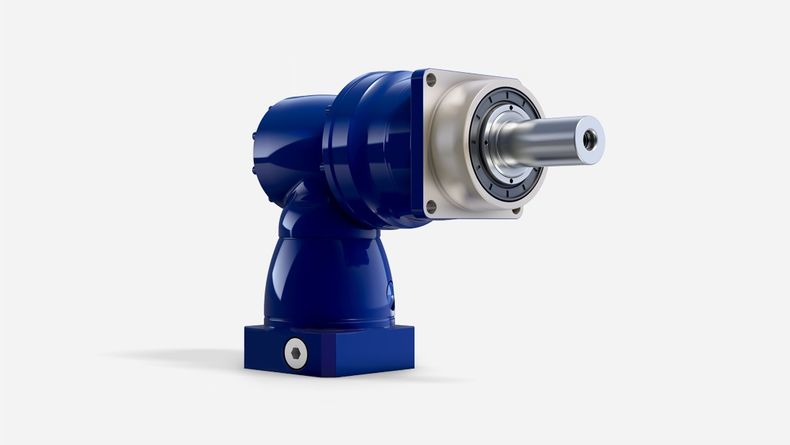

  • SPK+ hypoid gearbox in corrosion resistant design

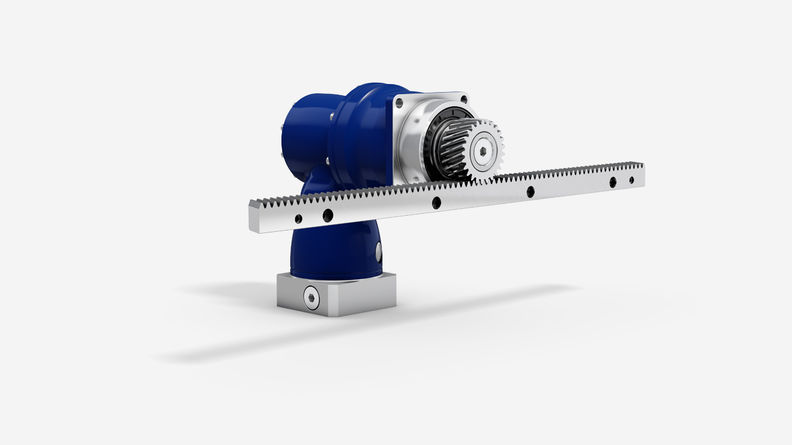

  • SPK+ hypoid gearbox with rack and pinion

  • Motor mounting alpha Advanced Line / alpha Premium Line Right-angle gearboxes

Space-saving right-angle precision with output shaft

Low backlash right-angle gearboxes with SP+ compatible output shaft. With its short design in the axial plane the gearbox series SPK+ is used in compact machines. They especially convince through high power density while delivering high precision, torque and efficiency.






Customised solutions

We will be happy to develop a solution for you that is tailored to your drive needs. You benefit from our years of experience, our highly skilled staff and our comprehensive service catalog. Please contact us.

Contact form

WITTENSTEIN Ltd. - 3 The Glades. Festival Way

WITTENSTEIN Ltd.

3 The Glades. Festival Way

Stoke on Trent. Staffordshire. ST1 5SQ

  • Technical data
  • Options
Product type SPK+
Version MF
Ratio 12 - 1000
Number of sizes 6

Max. backlash c)

jt [arcmin]Standard

≤ 4

Reduced
≤ 2

Max. torqueT2a [Nm]80 - 5700
Max. input speedn1Max [rpm]7500
Torsional rigidityCt21 [Nm/arcmin]510
Max. tilting momentM2KMax [Nm]5000

c) In relation to reference sizes

Output shape
Smooth shaft

Shaft with key d)

Splined shaft (DIN 5480)
Blind hollow shaft
Output on both sides
Input shape
Motor-mounted
Characteristic
Food-grade lubrication a) b)
Corrosion resistant a) b)
System solutions
Linear system (rack / pinion)
Accessory (please refer to the product pages for further information)
Coupling
Shrink disc

a) Performance reduction: Technical data available on request

b) Please contact WITTENSTEIN alpha

d) Performance reduction: Please use our sizing software cymex® for a detailed sizing

Product highlights

Consistently high performance

Constant backlash throughout the service life of the gearbox ensures a consistently high performance.

Low maintenance

Highest quality standards guarantee a long service life and extend maintenance intervals.

Speed

High speeds increase machine output.

Compactness

The right-angle design allows for shorter machine concepts due to being short in the axial plane.

Reliability

Extremely reliable gearboxes prevent cost-intensive machine breakdowns.

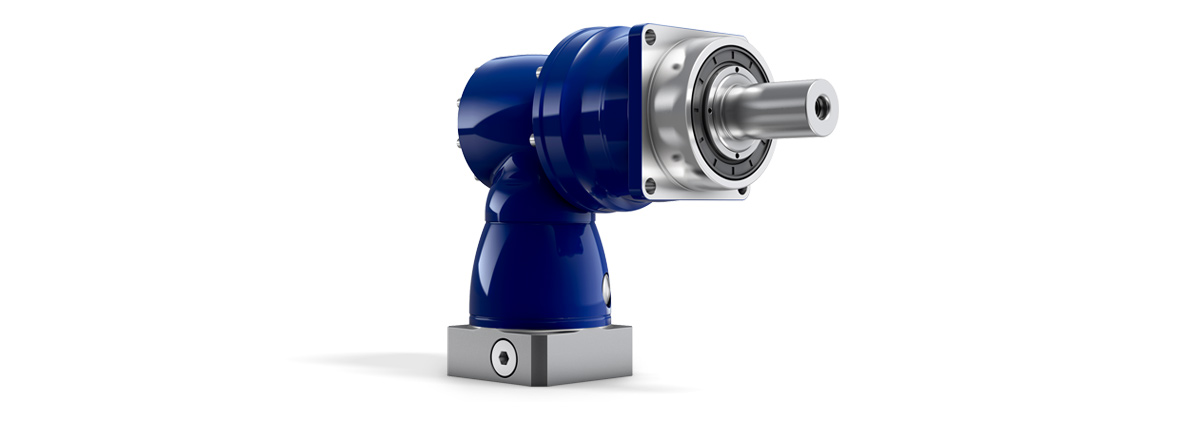

Taper roller bearings for absorbing axial and radial forces

Output compatible with SP+ series

Variable output connection, also rearward

High-quality hypoid gearing for a higher torque and smoother operation

Metal bellows coupling at the input: Length compensation to protect the motor bearing

WITTENSTEIN alpha in all axes

Right-angle gearboxes

WITTENSTEIN alpha develops complete, single-supplier solutions for any driving axis. They can be used in virtually any application – from high-precision axes in manufacturing systems to packaging machinery where maximum productivity is required.
The name WITTENSTEIN alpha is a byword for premium quality and reliability, high precision and synchronization accuracy, highest power density, a long lifetime and very simple motor mounting.
