NVS worm gearbox

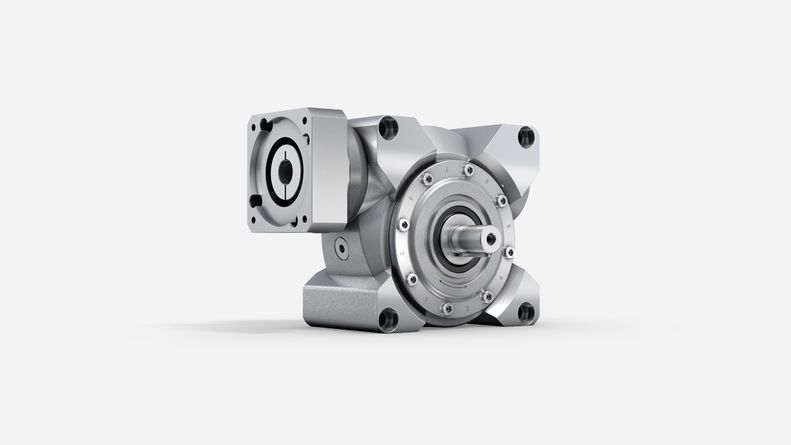

  • NVS worm gearbox with solid shaft

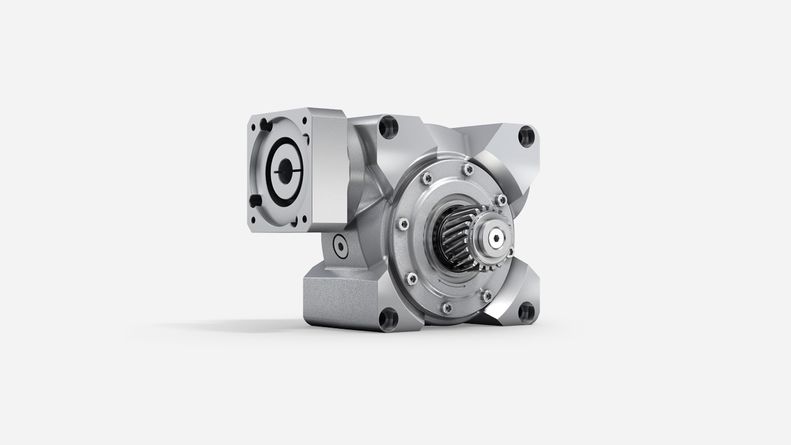

  • NVS worm gearbox with pinion
  • NVS worm gearbox with elastomer coupling ELC
  • Value Linear System with NVS worm gearbox

Economical servo worm

The NVS servo worm gearbox with output shaft is the perfect choice for both cyclic and continuous operation. The gearbox has a constant low backlash over the entire service life and affords consistent high quality with high positioning accuracy.

Customised solutions

We will be happy to develop a solution for you that is tailored to your drive needs. You benefit from our years of experience, our highly skilled staff and our comprehensive service catalog. Please contact us.

Contact form

WITTENSTEIN Ltd. - 3 The Glades. Festival Way

WITTENSTEIN Ltd.

3 The Glades. Festival Way

Stoke on Trent. Staffordshire. ST1 5SQ

  • Technical data
  • Options
Product type NVS
Version MF
Ratio 4 - 400
Number of sizes 3

Max. backlash c)

jt [arcmin]Standard

≤ 6

Max. torqueT2a [Nm]74 - 365
Max. input speedn1Max [rpm]6000

c) In relation to reference sizes

Output shape
Smooth shaft

Shaft with key d)

Output on both sides
Input shape
Motor-mounted

Characteristic


Food-grade lubrication
Corrosion resistant
System solutions
Linear system (rack / pinion)
Accessory (please refer to the product pages for further information)
Coupling

d) Performance reduction: Please use our sizing software cymex® for a detailed sizing

Product highlights

High performance

The NVS worm gearbox convinces with a high performance in economical standard applications in cyclic and continuous operation.

No stick-slip effect

The stick-slip effect is not an issue in applications with the NVS thanks to the perfected hollow-flank toothing.

High flexibility

In addition to the shaft output shapes, the worm gearboxes are also available in a corrosion-resistant design.

Radial shaft seal

  • Very long service life
  • Optimized for continuous operation

Hollow-flank toothing

  • Medium torsional backlash accuracy over the entire service life
  • High efficiency
  • High power density

Input bearing

  • Bearing package to absorb axial and radial forces
  • Very well suited to high input speeds

Output bearing

  • High overload capacity to absorb axial and radial forces

Metal bellows coupling

  • Completely backlash free
  • Lifetime durable and maintenance free
  • Easy assembly
  • Protects the motor through thermal linear expansion compensation
