NPRK bevel gearboxes

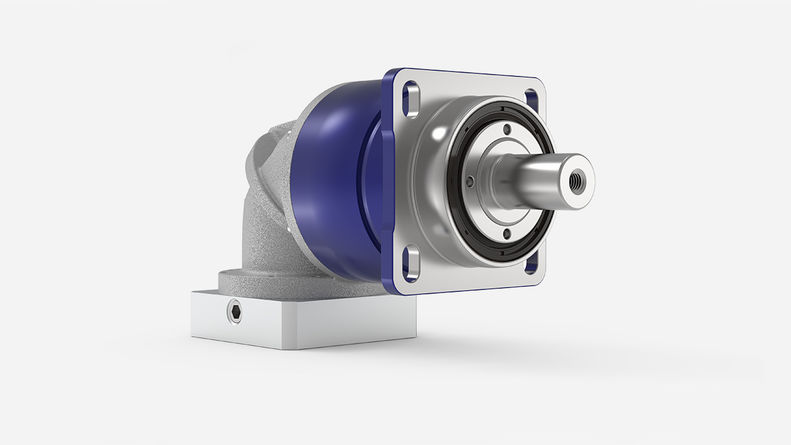

  • NPRK bevel gearbox with output shaft

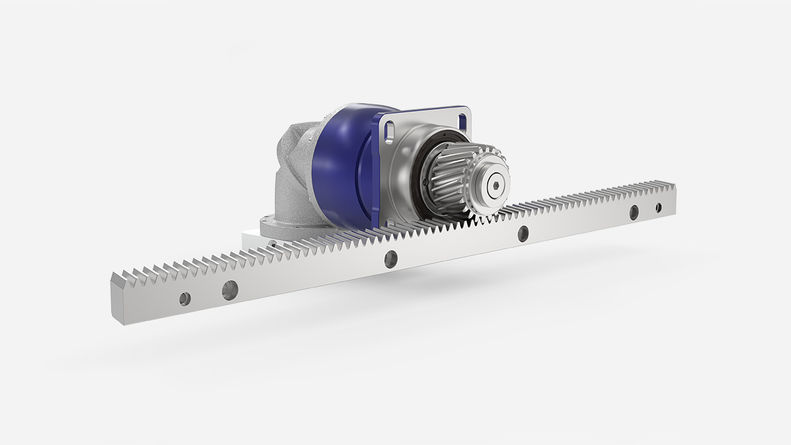

  • NPRK bevel gearbox with slot holes for optimal rack and pinion mounting

Individual Talents

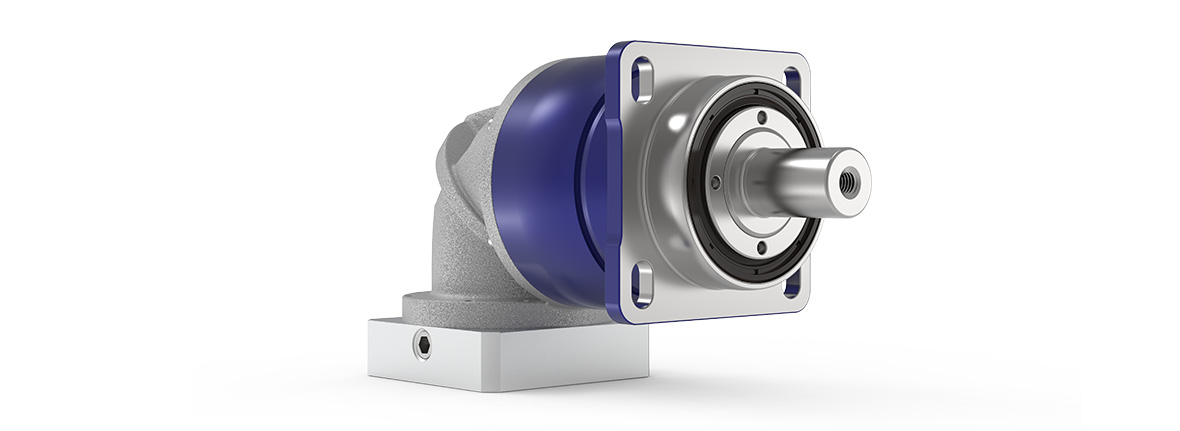

The NPRK bevel gearbox of the alpha Value Line impresses with its slotted holes and is therefore a perfect solution for rack and pinion mounting.

Learn more

Customised solutions

We will be happy to develop a solution for you that is tailored to your drive needs. You benefit from our years of experience, our highly skilled staff and our comprehensive service catalog. Please contact us.

Contact form

WITTENSTEIN Ltd. - 3 The Glades. Festival Way

WITTENSTEIN Ltd.

3 The Glades. Festival Way

Stoke on Trent. Staffordshire. ST1 5SQ

  • Technical data
  • Options
Product type NPRK
Version MF
Ratio 3 - 100
Number of sizes 4

Max. backlash c)

jt [arcmin]Standard

≤ 11

Max. torqueT2a [Nm]33 - 700
Max. input speed 5000

c) In relation to reference sizes

Output shape
Smooth shaft

Shaft with key d)

Splined shaft (DIN 5480)
Input shape
Motor-mounted
Characteristic
Flange with slotted holes (standard)
Food-grade lubrication a) b)
System solutions
Linear system (rack / pinion)
Accessory (please refer to the product pages for further information)
Coupling

a) Performance reduction: Technical data available on request

b) Please contact WITTENSTEIN alpha

d) Performance reduction: Please use our sizing software cymex® for a detailed sizing

Product highlights

High flexibility

The NPRK bevel gearbox with slotted holes and output shaft offers design freedom tailored to individual requirements. Due to the integrated slotted holes in the output flange, the gearbox is especially optimized for pinions and racks connections.

High economy

The gearboxes of the alpha Value Line are very economical to purchase, unbeatably efficient in operation, and maintenance free over their entire service life.

Flexible motor connection

Mounting of all common servo motors by means of a flexible and screw-fastened adapter plate as well as a large number of motor shaft diameters.

Design

The elegant design underlines the dynamics of the gearbox and sets new standards on the market

Compactness

The extremely compact design of the angle section enables use in very confined installation spaces

High ratio variation

  • Large number of ratios (i=3 to i=100)
  • Available in the common binary ratios

Flexible motor connection

  • Mounting of all common servo motors by means of a flexible and screw-fastened adapter plate
  • Large number of motor shaft diameters connectable

Output shape

Higher external forces possible with NPRK

Design

The elegant design underlines the dynamics of the gearbox and sets new standards on the market

Compactness

The extremely compact design of the angle section enables use in very confined installation spaces

High ratio variation

  • Large number of ratios (i=3 to i=100)
  • Available in the common binary ratios

Flexible motor connection

  • Mounting of all common servo motors by means of a flexible and screw-fastened adapter plate
  • Large number of motor shaft diameters connectable

Output shape

Higher external forces possible with NPRK

WITTENSTEIN alpha in all axes

Right-angle gearboxes

WITTENSTEIN alpha develops complete, single-supplier solutions for any driving axis. They can be used in virtually any application – from high-precision axes in manufacturing systems to packaging machinery where maximum productivity is required.
The name WITTENSTEIN alpha is a byword for premium quality and reliability, high precision and synchronization accuracy, highest power density, a long lifetime and very simple motor mounting.
