LPB+ planetary gearboxes

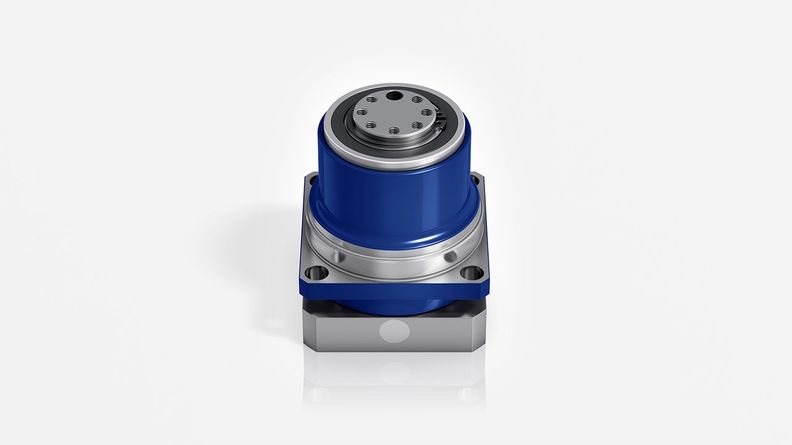

  • LPB+ Generation 3 planetary gearbox with output flange

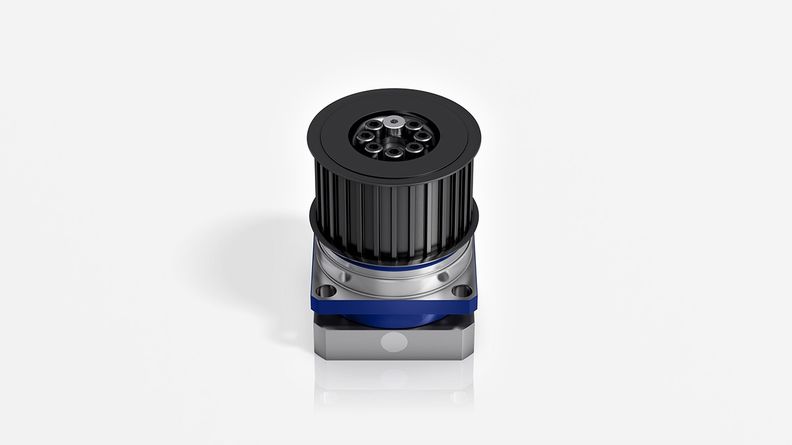

  • LPB+ Generation 3 planetary gearbox with belt pulley
  • Motor mounting LPB+ planetary gearbox

Economical multitalent

Low backlash planetary gearbox with output flange or belt pulley combines maximum quality with economical precision. The LPB+ is especially suitable for compact belt drives.

Customised solutions

We will be happy to develop a solution for you that is tailored to your drive needs. You benefit from our years of experience, our highly skilled staff and our comprehensive service catalog. Please contact us.

Contact form

WITTENSTEIN Ltd. - 3 The Glades. Festival Way

WITTENSTEIN Ltd.

3 The Glades. Festival Way

Stoke on Trent. Staffordshire. ST1 5SQ

  • Technical data
  • Options
Product type LPB+
Version MF
Ratio c) 3 - 100
Number of sizes 3

Max. backlash c)

jt [arcmin]Standard

≤ 8

Max. torqueT2a [Nm]37 - 305
Max. input speedn1Max [rpm]6000

c) In relation to reference sizes

Output shape
Flange
Input shape
Motor-mounted

Characteristic


Food-grade lubrication a) b)
System solutions
Linear system (rack / pinion)
Accessory (please refer to the product pages for further information)
Coupling

a) Performance reduction: Technical data available on request

b) Please contact WITTENSTEIN alpha

WITTENSTEIN alpha in all axes

Low backlash planetary gearboxes

WITTENSTEIN alpha develops complete, single-supplier solutions for any driving axis. They can be used in virtually any application – from high-precision axes in manufacturing systems to packaging machinery where maximum productivity is required.
The name WITTENSTEIN alpha is a byword for premium quality and reliability, high precision and synchronization accuracy, highest power density, a long lifetime and very simple motor mounting.
