HDV Hygienic Design planetary gearbox

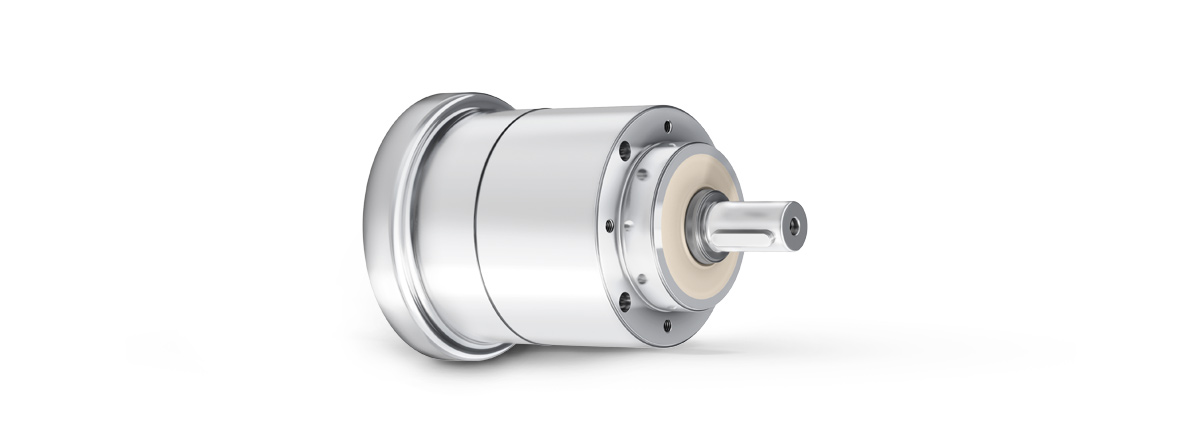

  • HDV planetary gearbox with output flange in Hygienic Design

Reliably clean

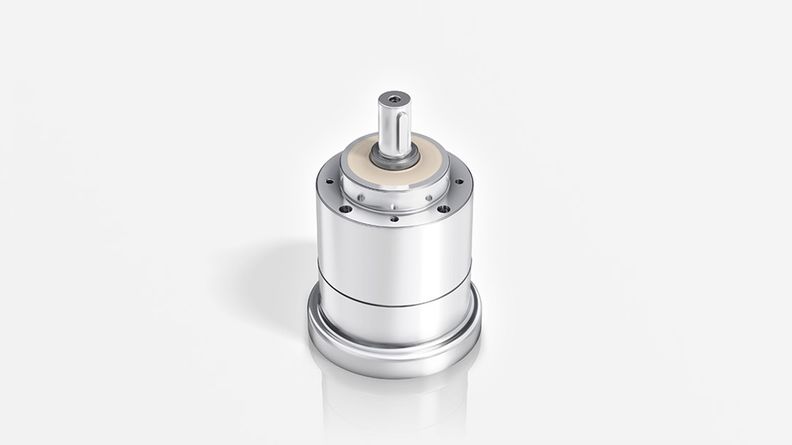

Low-backlash planetary gearboxes with an output shaft in Hygienic Design. Reliable and efficient cleaning of the gearbox is a key feature of the gearbox series developed in accordance with EHEDG guidelines. The new concept gives designers unprecedented degrees of freedom to develop machines that meet the most exacting requirements for hygienic and sterile production processes.

Learn more

Customised solutions

We will be happy to develop a solution for you that is tailored to your drive needs. You benefit from our years of experience, our highly skilled staff and our comprehensive service catalog. Please contact us.

Contact form

WITTENSTEIN Ltd. - 3 The Glades. Festival Way

WITTENSTEIN Ltd.

3 The Glades. Festival Way

Stoke on Trent. Staffordshire. ST1 5SQ

  • Technical data
  • Options
Product type HDV
Version MF / MT *)
Ratio 4 - 100
Number of sizes 3

Max. backlash c)

jt [arcmin]Standard

≤ 10

Max. torqueT2a [Nm]46 - 320
Max. input speedn1Max [rpm]6000

*) MT version with reinforced output bearing (HIGH FORCES). Please contact WITTENSTEIN alpha.

c) In relation to reference sizes

Output shape
Smooth shaft

Shaft with key d)

Input shape
Motor-mounted

Characteristic


Food-grade lubrication
Corrosion resistant
System solutions
Servo actuator

d) Performance reduction: Please use our sizing software cymex® for a detailed sizing

Product highlights

Hygienic Design

New design freedom because of direct process integration.

Cleanability

Fast, efficient and reliable cleaning. Resistant to chemical cleaning materials and desinfectants.

Sealing

Optimal sealing properties (IP69X, max. 30 bar)

Reliability

Extremely reliable gearboxes prevent cost-intensive machine breakdowns.

Low maintenance

Highest quality standards guarantee a long service life and extend maintenance intervals.

Certification

  • FDA-certified materials

Surface texture

  • Smooth-rolled surface made of hygienic steel 1.4404
  • Electropolished surface also optionally possible


Cavity-free housing design

  • No undercuts
  • Large radii
  • No horizontal surfaces


Maximum safety

  • Triple sealing concept
  • Seals resistant to cleaning agents
  • IP69X (max. 30 bar)


Certification

  • FDA-certified materials

Surface texture

  • Smooth-rolled surface made of hygienic steel 1.4404
  • Electropolished surface also optionally possible


Cavity-free housing design

  • No undercuts
  • Large radii
  • No horizontal surfaces


Maximum safety

  • Triple sealing concept
  • Seals resistant to cleaning agents
  • IP69X (max. 30 bar)


WITTENSTEIN alpha in all axes

Low backlash planetary gearboxes

WITTENSTEIN alpha develops complete, single-supplier solutions for any driving axis. They can be used in virtually any application – from high-precision axes in manufacturing systems to packaging machinery where maximum productivity is required.
The name WITTENSTEIN alpha is a byword for premium quality and reliability, high precision and synchronization accuracy, highest power density, a long lifetime and very simple motor mounting.
