Built to protect

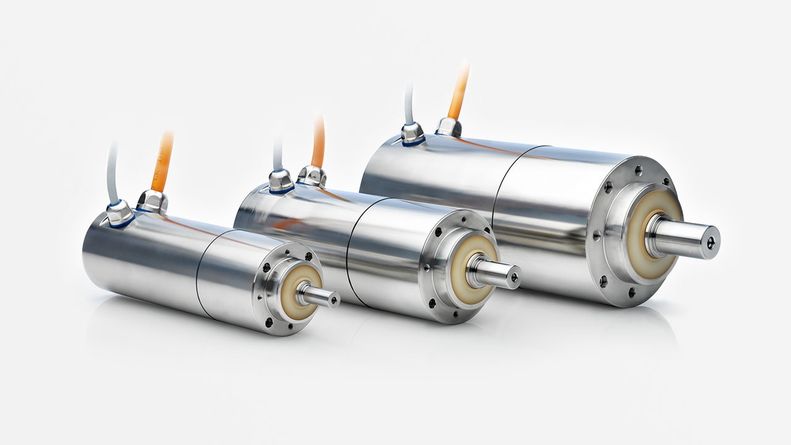

The compact axenia value servo actuator was specially developed and produced for challenging applications according to EHEDG guidelines. It provides decisive improvements in process and machine reliability as well as availability. It is made from highly resistant stainless steel and therefore enjoys long-term resistance to numerous aggressive cleaning agents and disinfectants. The dynamic combination of planetary gearbox and servo motor offers reliably scaled performance data for various maximum surface temperatures.

Hygienic and secure production

Customised solutions

We will be happy to develop a solution for you that is tailored to your drive needs. You benefit from our years of experience, our highly skilled staff and our comprehensive service catalog. Please contact us.

Contact form

WITTENSTEIN Ltd. - 3 The Glades. Festival Way


3 The Glades. Festival Way

Stoke on Trent. Staffordshire. ST1 5SQ

  • Model
  • Options
  • Technical data
  • Your benefits

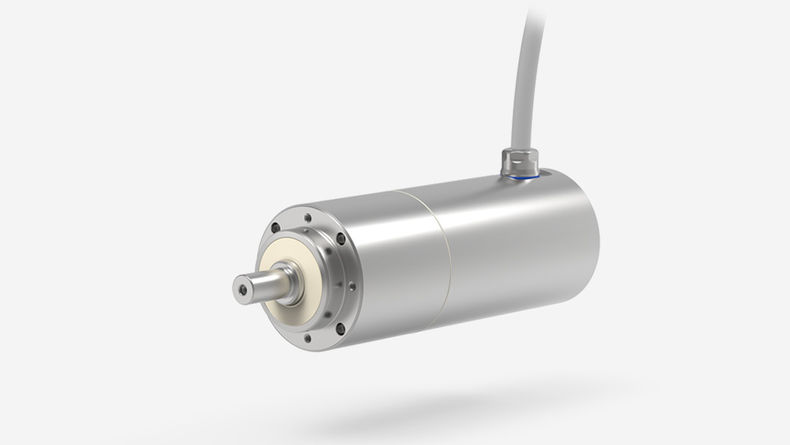

Compact and powerful servo actuator made from stainless steel in Hygienic Design consisting of a planetary gearbox and synchronous servo motor with resolver, cable gland and cable, standard length 2 m.




You can choose from:

  • Permanent magnet holding brake
  • Absolute encoder EnDat 2.1 or Hiperface
  • DRIVECLiQ (on request), EnDat 2.2, Hiperface DSL
  • Temperature sensors PT1000 and PTC
  • Intermediate circuit voltage 320 or 560 V DC
  • Longer motor cables, fixed lengths up to 30 m



Product type axenia value
Ratio 10 - 25
Number of sizes 3

Max. backlash

jt [arcmin]

≤ 10

Max. acceleration torqueT2b [Nm]20,2 - 200
Max. output speedn2Max [rpm]600
Torsional rigidityCt21 [Nm/arcmin]24
Max. tilting momentM2KMax [Nm]407
Operating voltageUD [V DC]320/560


  • Direct and hygienic cleaning
  • High process reliability
  • Smaller machines or footprints
  • No complicated encapsulation
  • Fewer wearing parts in the machine
  • Lower downtimes and safe operation
  • Low maintenance and repair costs
  • High connectivity thanks to large selection of motor encoders



Product highlights

Process reliability

With its screw-free and edgeless construction, the servo actuator features a holistically hygienic design to prevent the growth of and infection with bacteria and germs.

Open design

The omission of the usual covers offers great design freedom while also enabling direct and more effective cleaning.

System availability

The materials were chosen to ensure safe operation and greater resilience when subjected to regular cleaning.

Flexibility and productivity

The outstanding dynamics facilitate rapidly changing product layouts and greater throughput.

Space requirements

The compact design of the servo actuator combined with the possibility of an open machine construction enables a smaller footprint.

Global application

The wide selection of motor encoders ensures compatibility with virtually all servo controllers available around the world, while the certifications and approvals allow for delivery to all main markets.

Our know-how – your benefit

axenia value – the dynamic answer to rising hygienic requirements

Power density

Thanks to the compact and coupling-free design, the performance relative to the installation length is approximately 30% higher than for comparable gear drives.


The specified performance data has been measured in our laboratory. When using individual components from different manufacturers, derating of 30 to 50% is generally required.

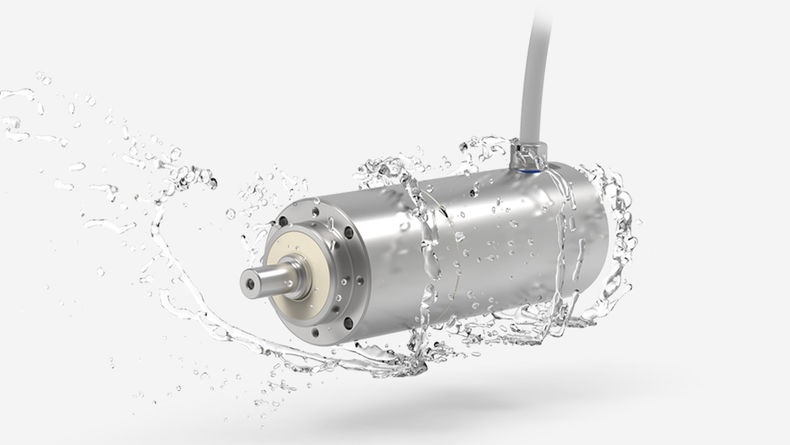

The actuator as a unit is lab-tested according to protection class IP69X (30 bar). The material 1.4404 of the housing and the material of the seals boast very high resistance.


Wide selection of analog and digital motor encoders, in conjunction with single-cable connection.

Certifications and guidelines (in preparation)

Comprehensive market access is facilitated by UL approval (in preparation), DFC certification and development according to EHEDG specifications.

WITTENSTEIN alpha in all axes

Rotary servo actuators

WITTENSTEIN alpha develops complete, single-supplier solutions for driving any axis. They can be used in virtually any application – from high-precision axes in manufacturing systems to packaging machinery where maximum productivity is called for.
The name WITTENSTEIN alpha is synonymous with premium quality and reliability, high precision and synchronization accuracy, the highest power density, a long lifetime and very simple motor mounting.
