NVH worm gearbox

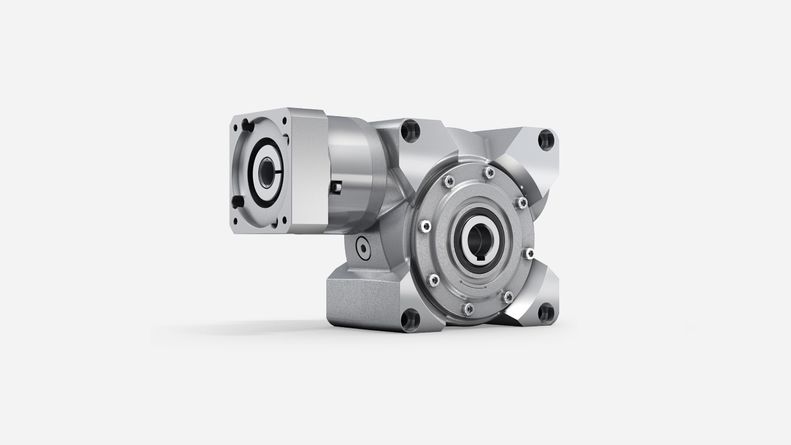

NVH worm gearbox with hollow shaft and keyed way on both sides

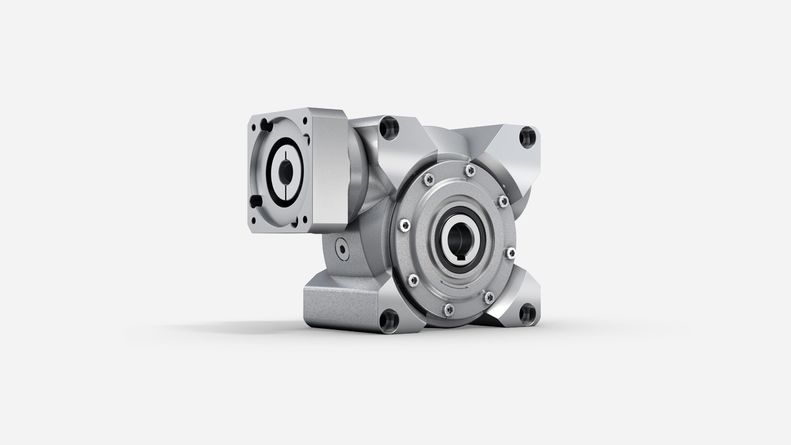

NVH worm gearbox with hollow shaft and integral planetary input stage
Economical servo worm
Low backlash servo worm gearbox with hollow shaft. The NVH of the V-Drive Value-family impresses with its high power density and medium torsional backlash. It is especially suitable for economical applications in continuous operation.
Downloads
Technical data / Dimension sheets
(1 MB)
- Catalog alpha Basic Line & alpha Value Line
(23 MB)
Ordering code / CAD data NVH- Technical documents (incl. operating manual)
(4 MB)
- Instruction sheet: Shrink disk
(773 KB)
- Instruction sheet: Sealing Plate
(122 KB)
- Operating manual cynapse®
(629 KB)
- Motor mounting video alpha Value Line
WITTENSTEIN Ltd.
3 The Glades. Festival Way
Stoke on Trent. Staffordshire. ST1 5SQ

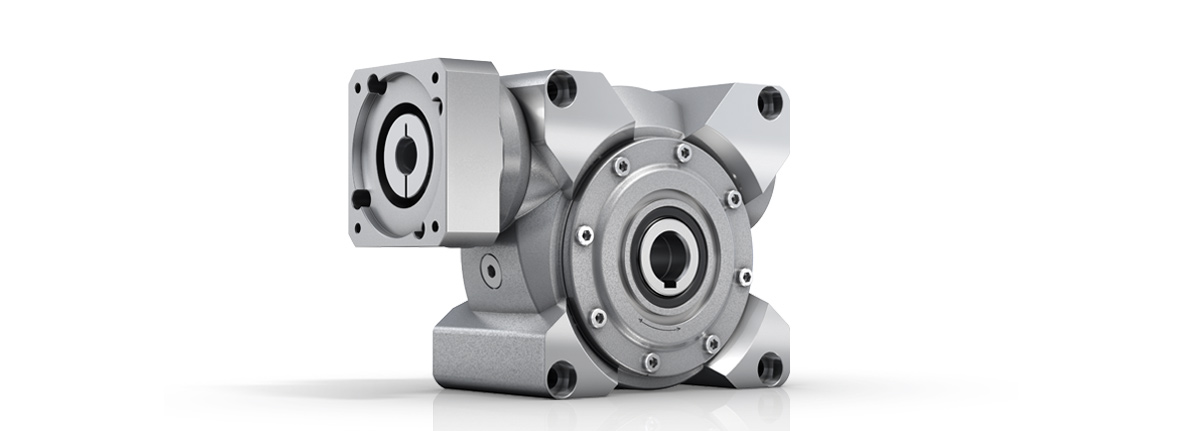

Product highlights
High performance
The NVH worm gearbox convinces with a high performance in economical standard applications in cyclic and continuous operation.
No stick-slip effect
The stick-slip effect is not an issue in applications with the NVH thanks to the perfected hollow-flank toothing.
High flexibility
In addition to the hollow shaft, the worm gearboxes are also available in a corrosion-resistant design.
Radial shaft seal
- Very long service life
- Optimized for continuous operation
Hollow-flank toothing
- Medium torsional backlash accuracy over the entire service life
- High efficiency
- High power density
Input bearing
- Bearing package to absorb axial and radial forces
- Very well suited to high input speeds
Output bearing
High overload capacity to absorb axial and radial forces
Metal bellows coupling
- Completely backlash free
- Lifetime durable and maintenance free
- Easy assembly
- Protects the motor through thermal linear expansion compensation
WITTENSTEIN alpha in all axes
Right-angle gearboxes
WITTENSTEIN alpha develops complete, single-supplier solutions for any driving axis. They can be used in virtually any application – from high-precision axes in manufacturing systems to packaging machinery where maximum productivity is required.
The name WITTENSTEIN alpha is a byword for premium quality and reliability, high precision and synchronization accuracy, highest power density, a long lifetime and very simple motor mounting.
