NPT planetary gearbox

  • NPT – Planetary gearbox with TP+ output geometry

  • Motor mounting alpha Value Line Planetary and right-angle gearboxes

Individual Talents

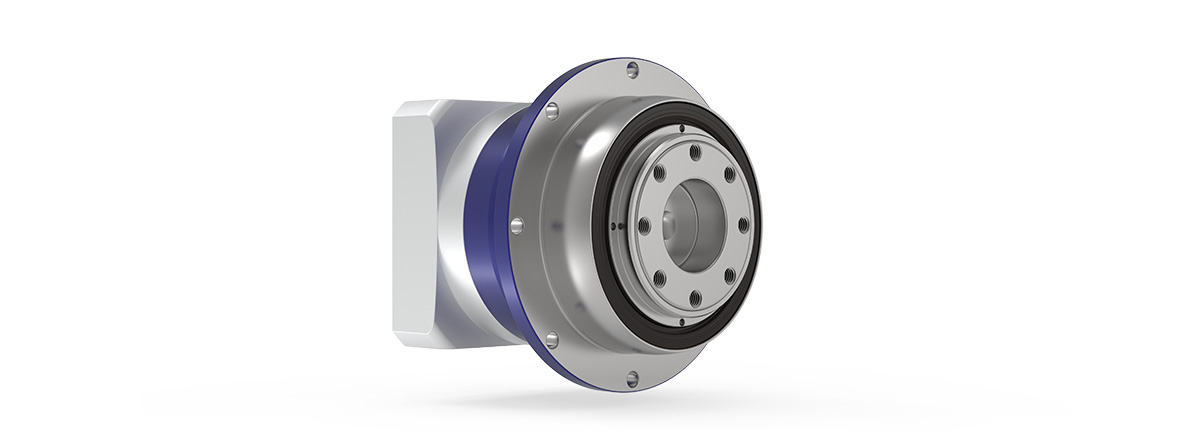

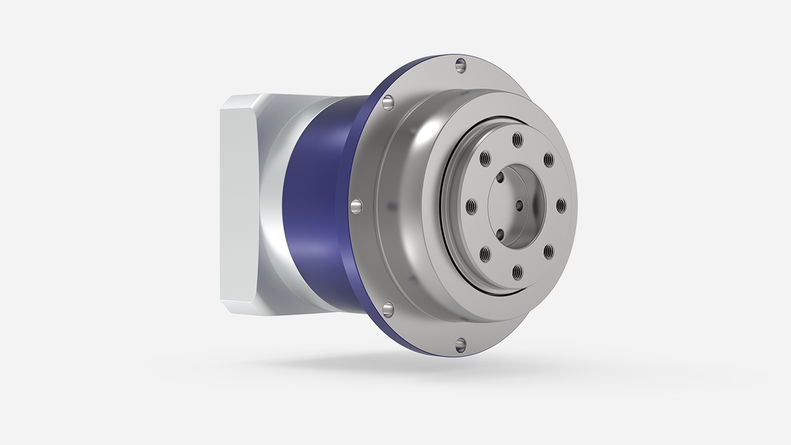

The NPT planetary gearbox with output flange is based on the familiar output geometry of the TP+ gearbox. And with the HIGH TORQUE version, a product offering maximum power density is now also available in the Value segment.

Learn more

Customised solutions

We will be happy to develop a solution for you that is tailored to your drive needs. You benefit from our years of experience, our highly skilled staff and our comprehensive service catalog. Please contact us.

Contact form

WITTENSTEIN Ltd. - 3 The Glades. Festival Way

WITTENSTEIN Ltd.

3 The Glades. Festival Way

Stoke on Trent. Staffordshire. ST1 5SQ

  • Technical data
  • Options
Product type NPT
Version MF / MA
Ratio 3 - 100
Number of sizes 5

Max. backlash c)

jt [arcmin]Standard

≤ 8

Max. torqueT2a [Nm]18 - 700
Max. input speedn1Max [rpm]10000

c) In relation to reference sizes

Output shape
Flange
Input shape
Motor-mounted

Characteristic


Food-grade lubrication a) b)

a) Performance reduction: Technical data available on request

b) Please contact WITTENSTEIN alpha

Product Highlights

Two-piece clamping hub system of the high-end segment

  • Labeled with the tightening torques for secure, fast motor mounting
  • Guarantees best synchronization properties

Output shape

Available with output flange

High ratio variation

  • Large number of ratios (i=3 to i=100)
  • Available in the common binary ratios

Differentiated power density

The HIGH TORQUE version permits an even higher torque density for sizes 015 – 035

Two-piece clamping hub system of the high-end segment

  • Labeled with the tightening torques for secure, fast motor mounting
  • Guarantees best synchronization properties

Output shape

Available with output flange

High ratio variation

  • Large number of ratios (i=3 to i=100)
  • Available in the common binary ratios

Differentiated power density

The HIGH TORQUE version permits an even higher torque density for sizes 015 – 035

WITTENSTEIN alpha in all axes

Low backlash planetary gearboxes

WITTENSTEIN alpha develops complete, single-supplier solutions for any driving axis. They can be used in virtually any application – from high-precision axes in manufacturing systems to packaging machinery where maximum productivity is required.
The name WITTENSTEIN alpha is a byword for premium quality and reliability, high precision and synchronization accuracy, highest power density, a long lifetime and very simple motor mounting.
