SPC+ bevel gearboxes

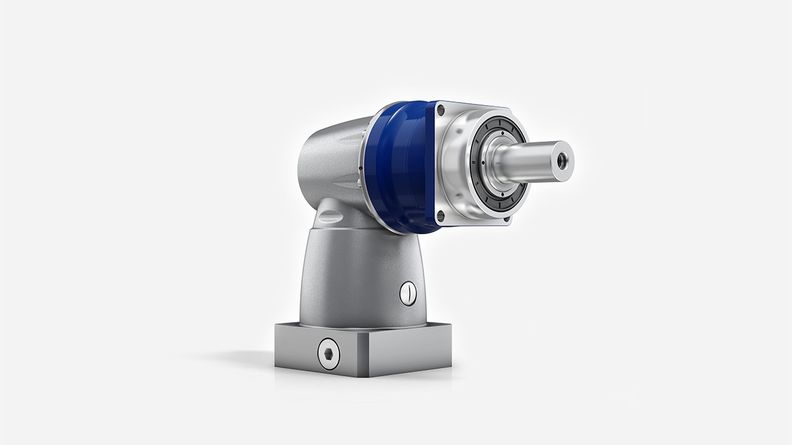

  • SPC+ bevel gear with output shaft

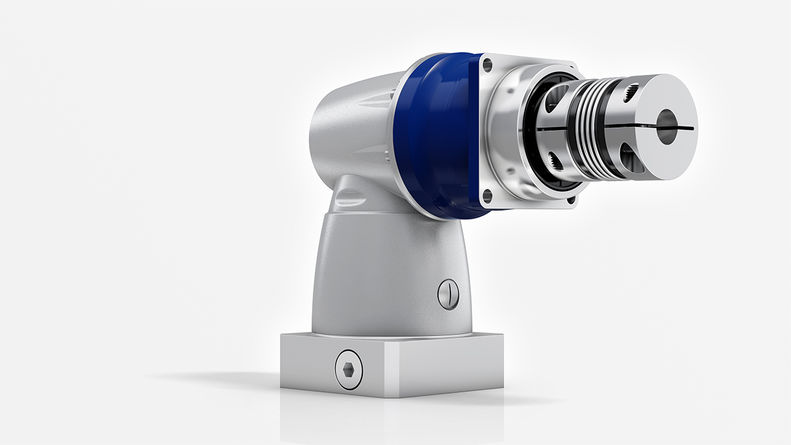

  • SPC+ bevel gear with metal bellow coupling

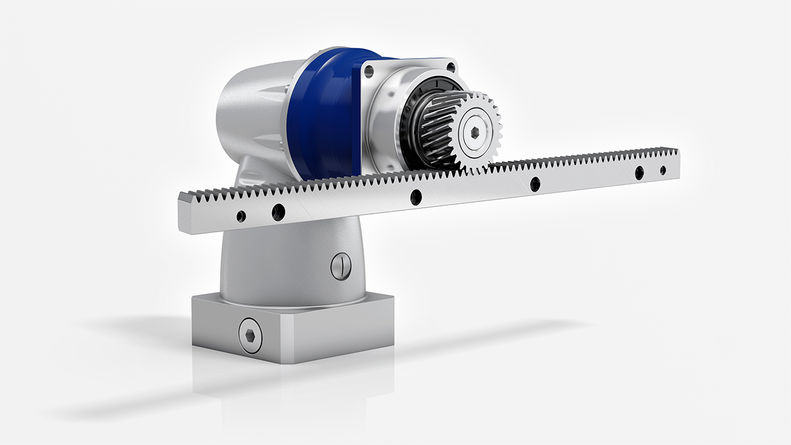

  • SPC+ bevel gear with rack and pinion

  • Motor mounting alpha Advanced Line / alpha Premium Line Right-angle gearboxes

High performance with low ratios

Low backlash right-angle gearboxes with SP+ compatible output shaft. With it’s short design in the axial plane the gearbox series SPC+ is used in compact machines. They especially convince in dynamic applications demanding high precision, torque and efficiency.






Customised solutions

We will be happy to develop a solution for you that is tailored to your drive needs. You benefit from our years of experience, our highly skilled staff and our comprehensive service catalog. Please contact us.

Contact form

WITTENSTEIN Ltd. - 3 The Glades. Festival Way

WITTENSTEIN Ltd.

3 The Glades. Festival Way

Stoke on Trent. Staffordshire. ST1 5SQ

  • Technical data
  • Options
Product type SPC+
Version MF
Ratio 4 - 20
Number of sizes 5

Max. backlash c)

jt [arcmin]Standard

≤ 4
Reduced
≤ 2

Max. torqueT2a [Nm]48 - 1936
Max. input speedn1Max [rpm]6000
Torsional rigidityCt21 [Nm/arcmin]166
Max. tilting momentM2KMax [Nm]1600

c) In relation to reference sizes

Output shape
Smooth shaft

Shaft with key d)

Splined shaft (DIN 5480)
Blind hollow shaft
Input shape
Motor-mounted

Characteristic


Food-grade lubrication a) b)
System solutions
Linear system (rack / pinion)
Accessory (please refer to the product pages for further information)
Coupling
Shrink disc

a) Performance reduction: Technical data available on request

b) Please contact WITTENSTEIN alpha

d) Performance reduction: Please use our sizing software cymex® for a detailed sizing

Product highlights

Consistently high performance

Constant backlash throughout the service life of the gearbox ensures a consistently high performance.

Low maintenance

Highest quality standards guarantee a long service life and extend maintenance intervals.

Speed

High speeds increase machine output.

Compactness

The right-angle design allows for shorter machine concepts due to being short in the axial plane.

Reliability

Extremely reliable gearboxes prevent cost-intensive machine breakdowns.

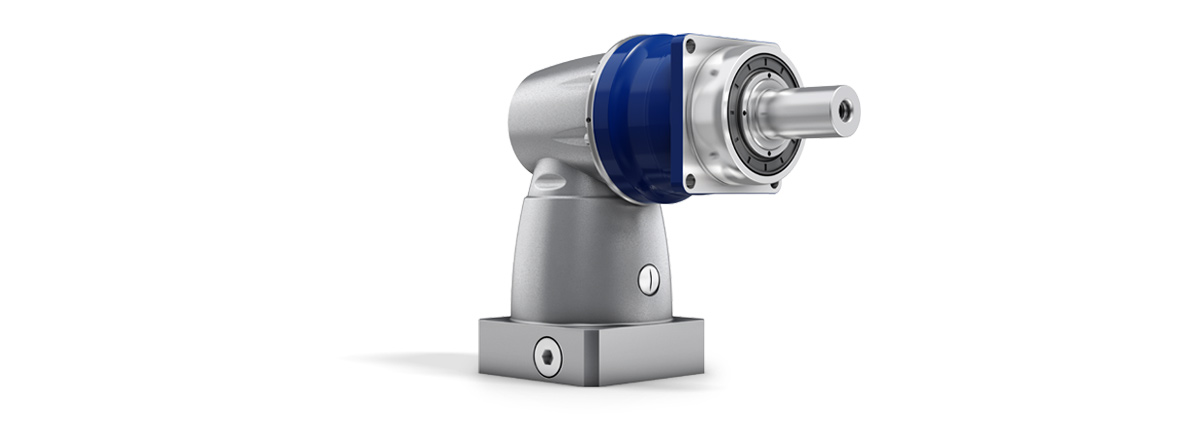

Intelligent design which reduces friction losses to a minimum

Output compatible with SP+ series

High toothing quality ensures:

  • Improved load bearing capacity and therefore higher torque
  • Precision thanks to minimum torsional backlash
  • Extremely smooth operation and stable running characteristics

Low temperature development, also at high speeds

Ideal for open system concepts: no external screws and functional beading integrated in the housing

Metal bellows coupling at the input: length compensation to protect the motor bearing

Intelligent design which reduces friction losses to a minimum

Output compatible with SP+ series

High toothing quality ensures:

  • Improved load bearing capacity and therefore higher torque
  • Precision thanks to minimum torsional backlash
  • Extremely smooth operation and stable running characteristics

Low temperature development, also at high speeds

Ideal for open system concepts: no external screws and functional beading integrated in the housing

Metal bellows coupling at the input: length compensation to protect the motor bearing

WITTENSTEIN alpha in all axes

Right-angle gearboxes

WITTENSTEIN alpha develops complete, single-supplier solutions for any driving axis. They can be used in virtually any application – from high-precision axes in manufacturing systems to packaging machinery where maximum productivity is required.
The name WITTENSTEIN alpha is a byword for premium quality and reliability, high precision and synchronization accuracy, highest power density, a long lifetime and very simple motor mounting.
